High Speed LSZH Fiber Optic Patch Cord For CATV

Payment Terms:	T/T,L/C,D/A,D/P
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: 1pcs/bag

Application: Networking

Brand Name: TESO

Mode: Multi, Single

Production Capacity: 1000000pcs/month

Delivery Date: 3-5days

Type: Optical Fiber

Certification: CE, RoHS

1.DIN fiber patch cord with low insertion loss and high return loss.
2. Compatible with DIN 47256.
3. Materials meet ROHS requirements.

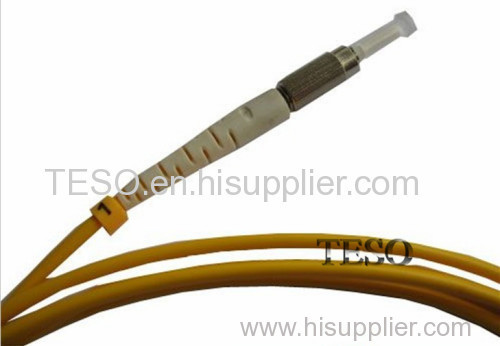

High Speed LSZH Fiber Optic Patch Cord For CATV , DIN 47256

Quick Detail:

1.DIN fiber patch cord with low insertion loss and high return loss.

2. Compatible with DIN 47256.

3. Materials meet ROHS requirements.

4. Riser, Plenum, and LSZH cables available.

5.Any length is available .

Application:

＊CATV

＊Telecommunication Networks

＊Computer networks

＊Premise Installations

Features:

＊Compatible with DIN 47256

＊Compact design

＊Low insertion loss and high return loss

＊Materials meet ROHS requirements

＊Riser, Plenum, and LSZH cables available

Product Description:

＊The DIN connectors used in our patch cords meet DIN 47256, They are compact and have spring-loaded free floating zirconia ferrules for superior performance.

＊In addition to basic testing, some mechanical and environmental tests per IEC or Telcordia are also performed periodically to guarantee the best quality.

＊For standard patch cords, sampling check is performed on ferrule geometry to ensure high percentage of polished connectors meeting GR-326 requirements.

＊For premium grade, ferrule geometry is tested on all patch cords to meet ghese GR-326 requirements.

＊Other standard single mode and multi mode fiber, G655, OM2, and OM3 fibers are also available upon request.

＊Flame retardant grade cable sheathing options are offered.

＊Riser rated cable will be provided as standard.

＊LSZH can be provided upon request.

Product Specification:

Parameters	Test Condition			Value(dB)
Parameters	Test Condition			Multi mode	Single mode
Insertion Loss	0.85/1.3um or 1.31/1.55um			0.3	0.3
Return Loss	0.85/1.3um or 1.31/1.55um			35	50 (APC 60)
Interchangeability	Connect Randomly			<0.2	<0.2
Vibration	5~50Hz, 1.5mm Amplitude			<0.1	<0.1
Tensile Strength	0~15Kgf (0.9mm Exception)			<0.1	<0.1
High Temperature	+85	During 100 Hours		<0.2	<0.2
Low Temperature	-40	During 100 Hours		<0.2	<0.2
Temperature Cycle	-40	~+85	during 5 Cycles	<0.2	<0.2
Humidity	25	~+65	93%R H, 100 hours	<0.2	<0.2
